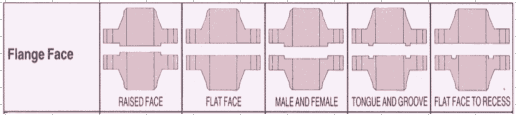

GASKET DIMENSIONS FOR JIS STANDARD FLANGES


Dimension Table ( in mm)

Size Full Face    Raised Face    Full Face    Raised Face    Full Face    Raisd Face
  5K   5k   10K   10K   16K   16K
  ID OD ID  OD ID OD ID OD ID OD  ID  OD
1/4"  10mm 18 75 18 45 18 90 18 53 18 90 18 53
1/2"   15mm 22 80 22 50 22 95 22 58 22 95 22 58
3/4"   20mm 28 85 28 55 28 100 28 63 28 100 28 63
1" 25mm 35 95 35 65 35 125 35 74 35 125 35 74
1 1/4" 32mm 43 115 43 78 43 135 43 84 43 135 43 84
1 1/2" 40mm 49 120 49 83 49 140 49 89 49 140 49 89
2" 50mm 61 130 61 93 61 155 61 104 61 155 61 104
2 1/2" 65mm 77 155 77 118 77 175 77 124 77 175 77 124
3"   80mm 90 180 90 129 90 185 90 134 90 200 90 140
3 1/2"90mm 102 190 102 139 102 195 102 144 102 210 102 150
4" 100mm 115 200 115 149 115 210 115 159 115 225 115 165
5" 125mm 141 235 141 184 141 250 141 190 141 270 141 203
6" 150mm 167 265 167 214 167 280 167 220 167 305 167 238
7" 175mm 192 300 192 240 192 305 192 245 192 0 192 0
8" 200mm 218 320 218 260 218 330 218 270 218 350 218 283
9" 215mm 244 345 244 285 244 350 244 290 244 0 244 0
10" 250mm 270 385 270 325 270 400 270 333 270 430 270 356
12" 300mm 321 430 321 370 321 445 321 378 321 480 321 406
14" 350mm 359 480 359 413 359 490 359 423 359 540 359 450
16" 400mm 410 540 410 473 410 560 410 486 410 605 410 510
18" 450mm 460 605 460 533 460 620 460 541 460 675 460 575
20" 500mm 513 655 513 583 513 675 513 596 513 730 513 630
22" 550mm 564 720 564 641 564 745 564 650 564 795 564 684
24" 600mm  615 770 615 691 615 795 615 700 615 845 615 734
